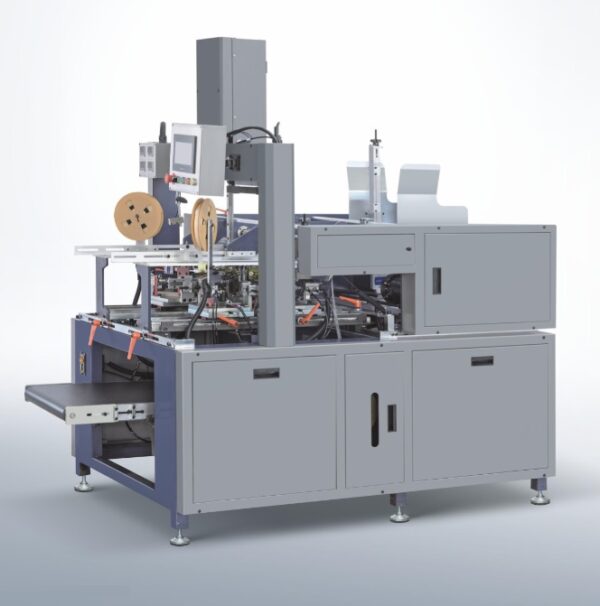

QTJ-420 AUTOMATIC CORNER PASTING MACHINE

QTJ-420 AUTOMATIC CORNER PASTING MACHINE

19,500 $

Product Description

QTJ-420 AUTOMATIC CORNER PASTING MACHINE

Introduction:

  1. Man-machine interface with PLC automatic control.

  2. Non-stop cardboard quick stacking and conversion device

  3. The replacement of the product is quick and easy, and the mold-exchange is fast

  4. Automatically sending tape, slitting, and sticking, to complete four-corner pasting at one time

  5. Belt type fast feeding board,

  6. With automatic alarm stop function when the card board has finished feeding

  7. With automatic alarm function when the hot melt adhesive

Machine features:

This machine is mainly used in the four corners pasting of the rigid box, both suitable for cardboard and MDF material, the automatic paper feeding, the stamping, the automatic feeding of the tape, the sticking, and the output of box are finished at one time. Can be used alone or inline with semi-automatic equipment. Small size, low power consumption, fast speed, and labor saving efficiency.

Parameter:

Model

QTJ-420

Max Size of box

450×350×120mm

Min Size of box

50×50×15mm

Paper size

≥730mm

Producing speed (Base on the height of box)

30-70 pcs/min

Machine size (LxWxH)

2300×1200×2100mm

Packing size( LxWxH)

2450×1350×2250mm

Packaging weight

1100 kg

Requirement for power supply

220V

Air supply demand

≥0.6 KG

Consumables-adhesive tape

19mm width, PET tape
