HBJ-D800 (SINGLE LANE) PAPER CARTON ERECTING MACHINE

HBJ-D800 (SINGLE LANE) PAPER CARTON ERECTING MACHINE

Product Description

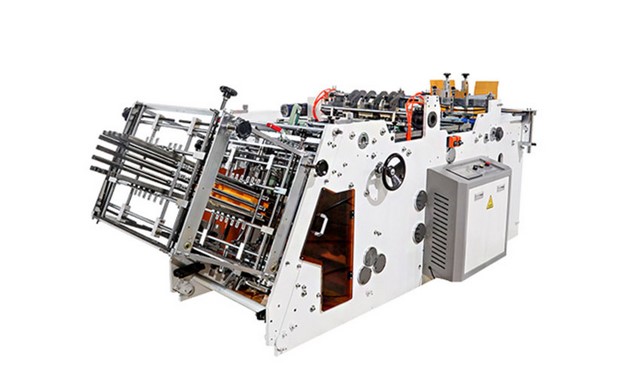

HBJ-D800 (SINGLE LANE) PAPER CARTON ERECTING MACHINE

Description

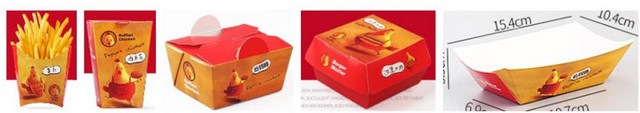

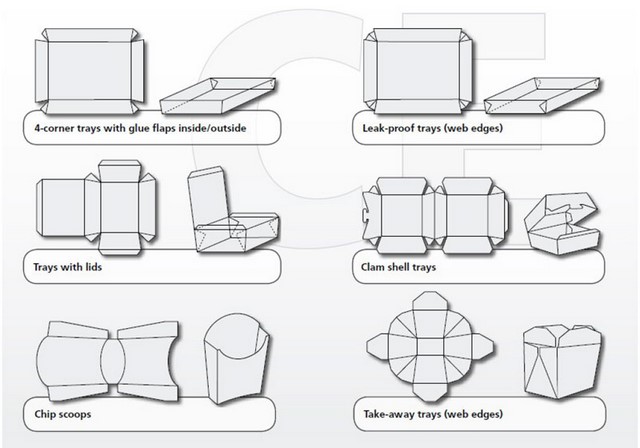

HBJ-D is an ideal choice to produce hamburger boxes, French fries box, food tray, lunch box,Chinese noodle box, hot dog box, etc. It adopts micro-computer, PLC, alternating current frequency converter, the vacuum-sucking paper feeding, auto gluing, automatic paper tape counting, and chain drive. All of these main parts and electric control system adopts imported brand to guarantee steady working, precise positioning, smooth running, safety and reliability operation It can make more than 10 types boxes. If the box is not in blow list, please show us your sample.

Type  HBJ-D800
Production Capacity  50-180 pcs/min
Suitable Material  200-600gsm card paper,PE coated paper, kraft paper, corrugated paper
Length L100-450mm,degree:5°-40°
Width B100-600mm
Height H15-200mm
Total Power 5KW
Total Weight 1.8T
Overall Dimension  3600 x1500 x 1700 mm
